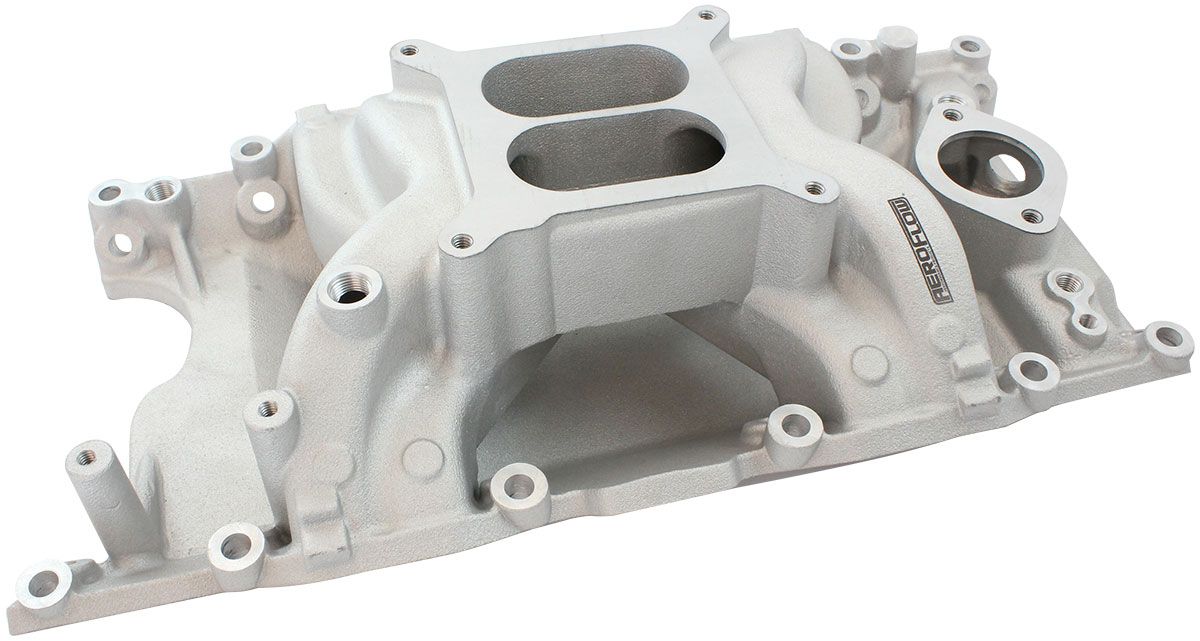

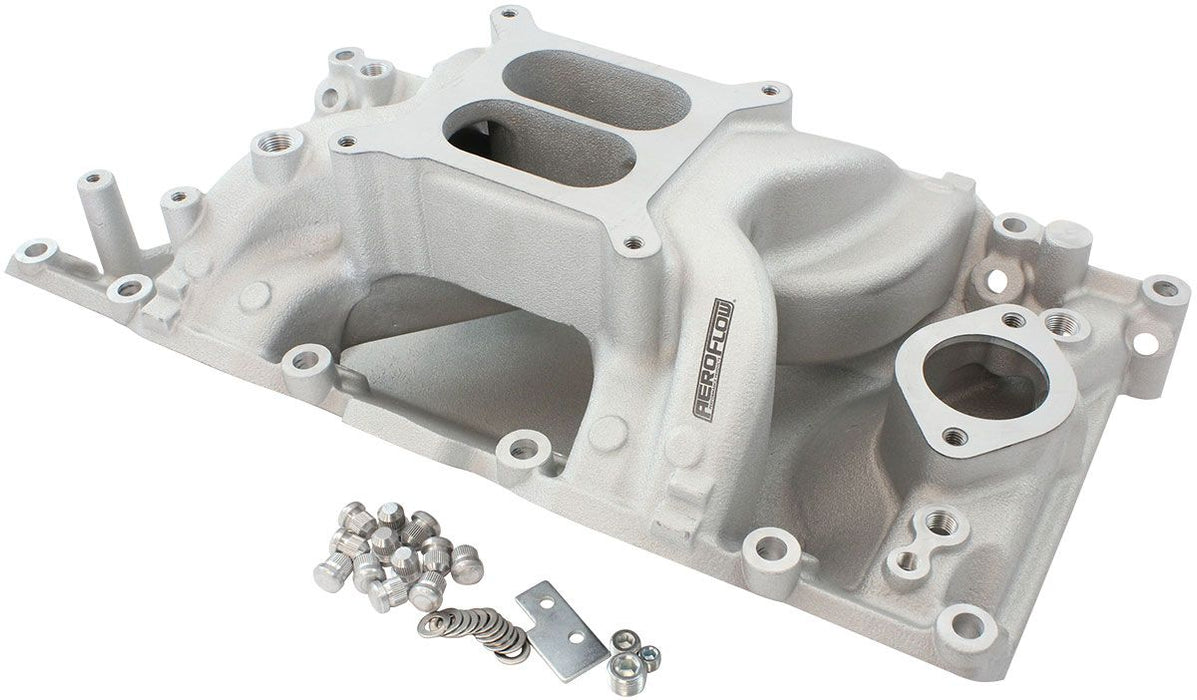

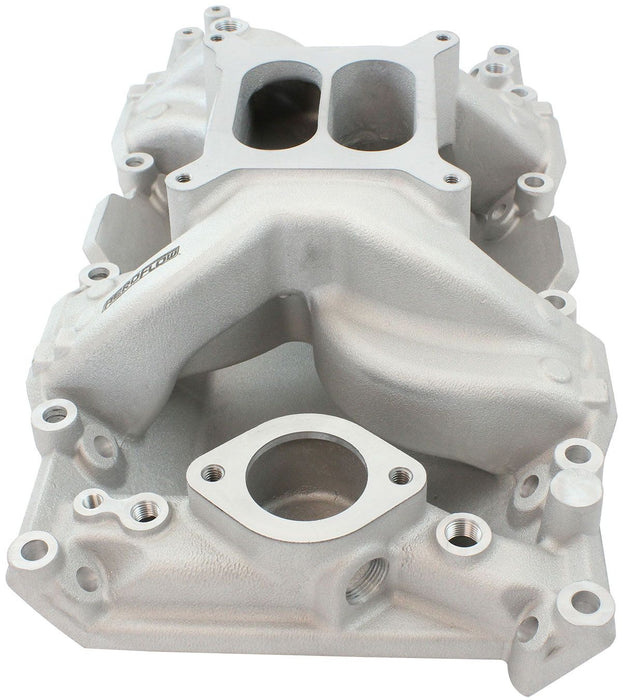

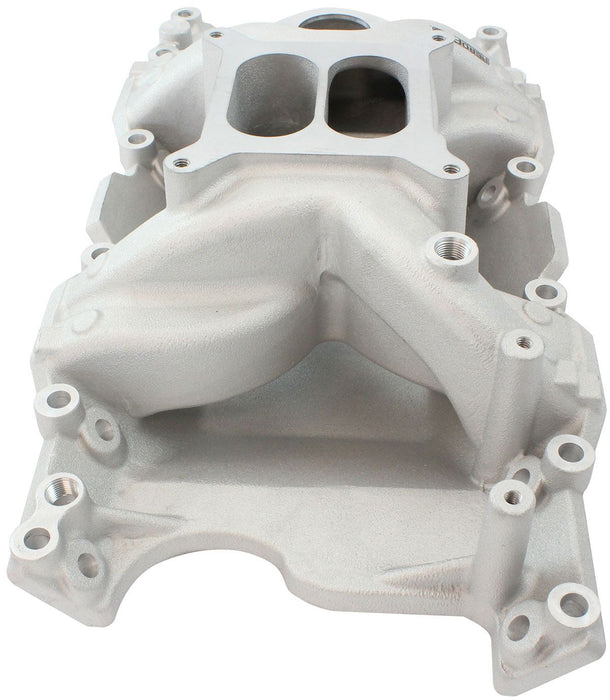

Aeroflow Sb Chrysler Air Gap Intake AF6010-3005

1500 - 6500 RPM, Square Bore Carburettor Pad, Non-EGR

Get the maximum power from your carburetted engine with this Air Gap Small Block Chrysler carburetted cast intake manifold. This dual-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket square-bore carburettors with either manual or electric choke options available on today’s market. Fits 318, 340 and 360 cubic inch small block Chrysler engines operating from 1500 to 6500 rpm range. In most cases, these manifolds accept late model water necks, air conditioning, alternator and H.E.I. ignition systems, NOTE 1979 and later rotary A/C compressor will not clear water neck.

Intake Runners should be port matched to your cylinder heads for optimal performance.

• Fits Small Block Chrysler 318-340-360 Cubic Inch Engines.

•Small Block Chrysler 318 360. Dual bolt pattern for use with 1967-1991 318, 340 & 360, and 1992-2003 318 & 360 Magnum V8 Engines. Press in block off plugs supplied for unused ports.

• Dual Plane Configuration.

• RPM operating range - 1500 to 6500.

• Natural Cast Finish.
