Spool RB25NEO Drag Pro I Beam Connecting Rods and ROSS Pistons

Spool RB25 Forged Drag Pro I Beam Connecting Rods and Ross Racing Forged Pistons

This Package includes:

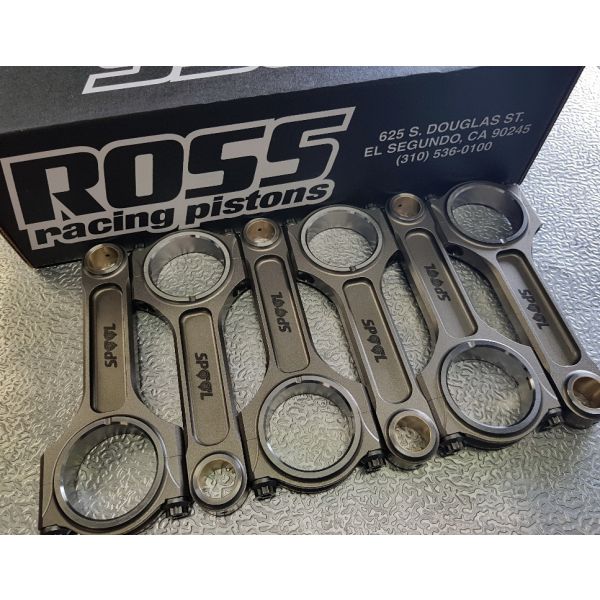

• Spool Forged Drag Pro I Beam Conrods (ARP 2000 7/16 Bolts)

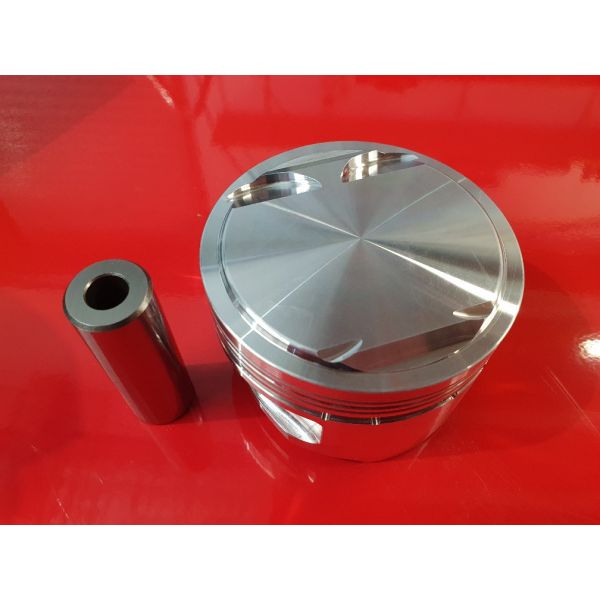

• Custom Ross Racing Forged Pistons (Rings, Pins and Locks)

Ross Racing Pistons Feature:

These Pistons are custom made for Spool and rated at 900-1000hp by Ross Racing Pistons.
With upgrade pins Ross rate these pistons up to 250 bhp per cylinder.

• Compression Ratio: 9.0:1
• Bore Sizes: +0.5mm and +1mm
• Pistons come with NPR Gas Nitrided top ring, three pcs. oil
• 0.225” wall Carbon steel (upgrade to H13 available)
• Forged 2618
• Locks

All of Ross Racing Pistons (since 1985) have been forged from 2618 billet bar stock and have been heat treated and aged to a T61 condition (2618-T61). 2618-T61 is the material that is used when fatigue resistance and durability are of prime importance by all premium racing piston manufacturers.

This material has less than 1% silicon particulate content. High silicon content pistons (forged from 4032 or MS75) will not stand up to the most extreme stress placed on many racing pistons. If a crack starts to form in a high silicon piston it will continue until the piston experiences a catastrophic failure. Simply stated, adding sand to the aluminum only makes it more brittle. In the rare instance of a 2618-T61 piston cracking, the crack will continue to an area where the stress is not as great and will then stop. Another advantage of 2618-T61 over the high silicon pistons is the ability to keep its shape under extreme pressure and high RPM's. "Skirt Shrinking" is not a problem with ROSS Racing Pistons.

Spool Connecting Rods Feature:

• ARP 2000 fasteners (L19 fasteners are available as an upgrade)
• High tensile 4340 forged steel
• 2 Piece forging
• Hardness of HRC36-42
• Dowelled caps for precision alignment
• X-RAY & Sonic tested
• Quenching and heat treated
• Shot peened
• 100% Magnafluxed
• Weight Matched Sets +/- 1 gram
• Vacuum degassed to remove impurities
