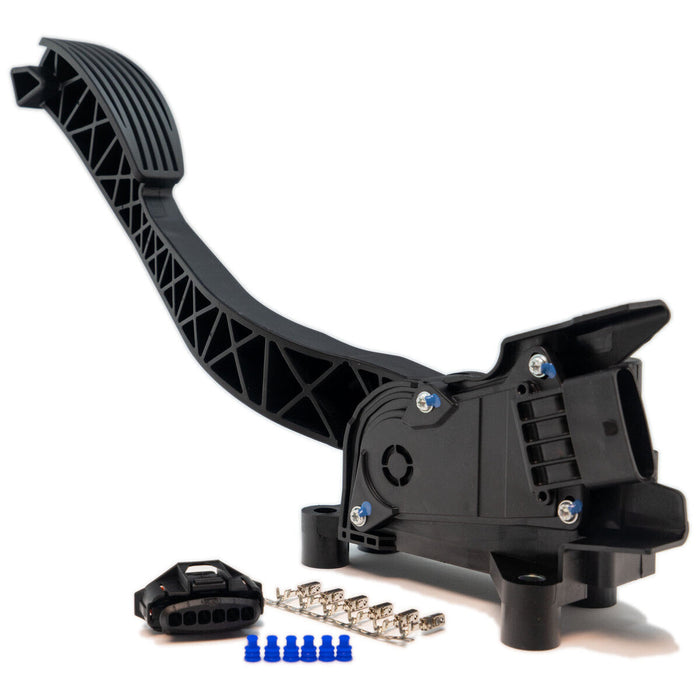

E-Throttle Accelerator Pedal Module
  • Firewall mounted hanging design
  • 16degree (~70mm) travel
  • Redundant dual output potentiometers suitable for use with Electronic throttle bodies
  • Includes 6 pin mating connector kit
Technical Specs:
See attached image.
Further details on E-Throttle setup can be found in the PC Link helpfile.

Pin 1 = 5V Pin 2 = 5V Pin 3 = Sensor Ground Pin 4 = AP Main Output Pin 5 = Sensor Ground Pin 6 = AP Sec Output
