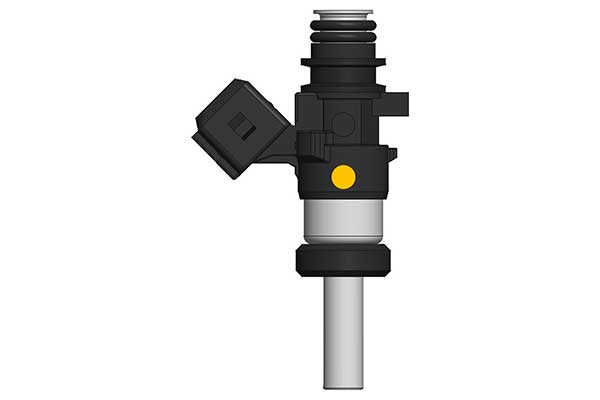

Raceworks 980cc Short with Extended Nose –11mm

Turned down Bosch Injector (Spray Pattern unmodified)
Size: 980cc (92 Lb/hr) @ 3bar and 1100cc (105 Lb/hr) @ 4bar
Impedance: High (12.0 Ohms)
Plug: Bosch Jetronic/Minitimer
Modified for 11mm apps (Subaru BRZ & Toyota 86)
Spray Pattern: Wide Cone
Spray Direction: Straight
Flow variance is +3% / -2% (5% total variance)

*Direct fit applications
Toyota 86
Subaru BRZ

*Injectors are a direct fit physically, but as with all Raceworks Injectors, will require a tune. While the vehicles listed above are direct fit, the injector can be used in many other applications with the appropriate extensions, o-rings or plug adapters.

FLYWHEEL POWER FIGURES (ESTIMATED) PER INJECTOR
